HARNESS THE POWER OF THE SUN

When disaster strikes and the power is out, do you have a back-up power plan?

The 200W Solar Panel Kit by Grid Doctor is prepared to be your personal power grid in an emergency.

Specially designed for use with the Grid Doctor 2200 Solar Generation System battery.

• CONNECT FOR QUADRUPLE THE POWER – Connect up to four 200W solar panels at once to unleash quadruple the power. That’s 800W of solar power! The perfect solution for maximizing solar rays on cloudy and intermittently sunny days.
• BEST-OF-THE-BEST, HIGH-CONVERSION CELLS – Our advanced monocrystalline solar cells deliver fast, reliable, off-grid charging. The gold standard in efficient energy conversion, this emergency solar panel harnesses more. Turn every ray possible into power without paying a premium price!
• UNMATCHED ENERGY-EFFICIENCY – You won’t find a more energy-efficient solar panel anywhere else. It recharges faster, returning your electronics to full operational status quickly. And efficient energy use extends the longevity of your power source, keeping critical communication tools in operation longer.

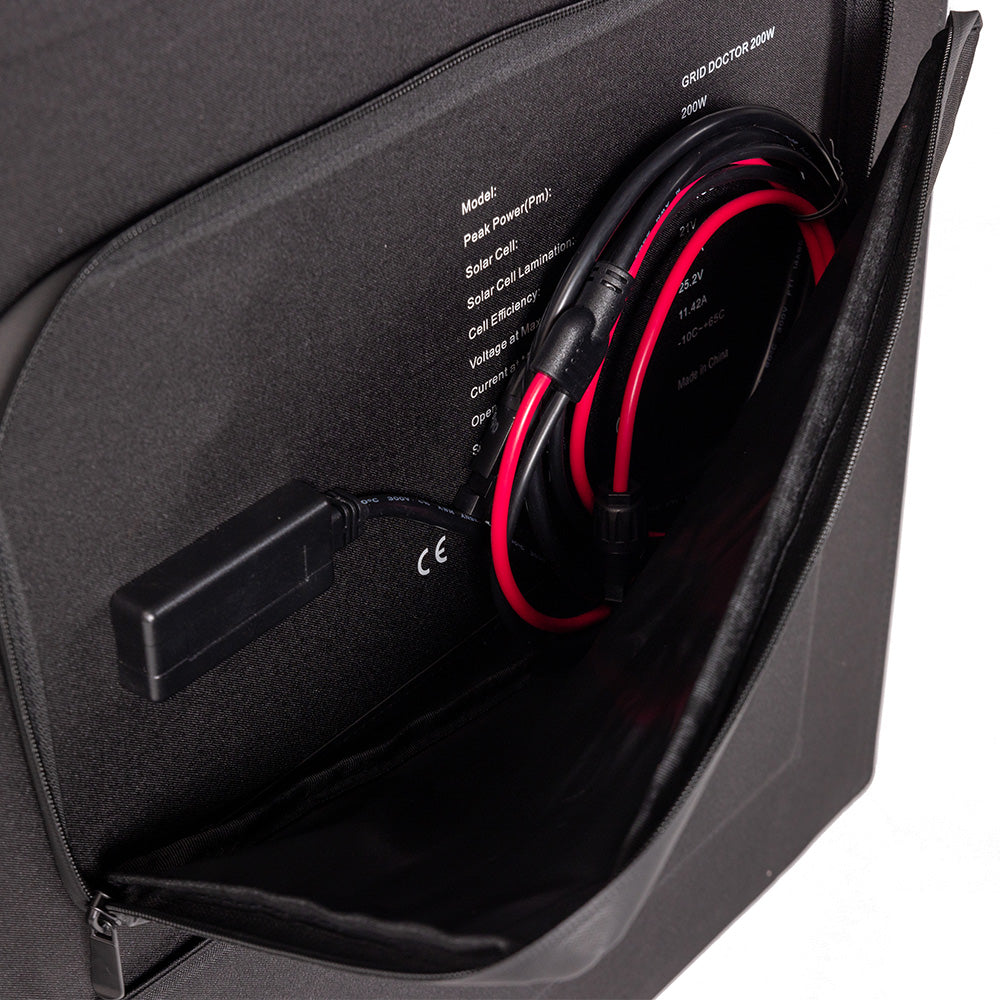

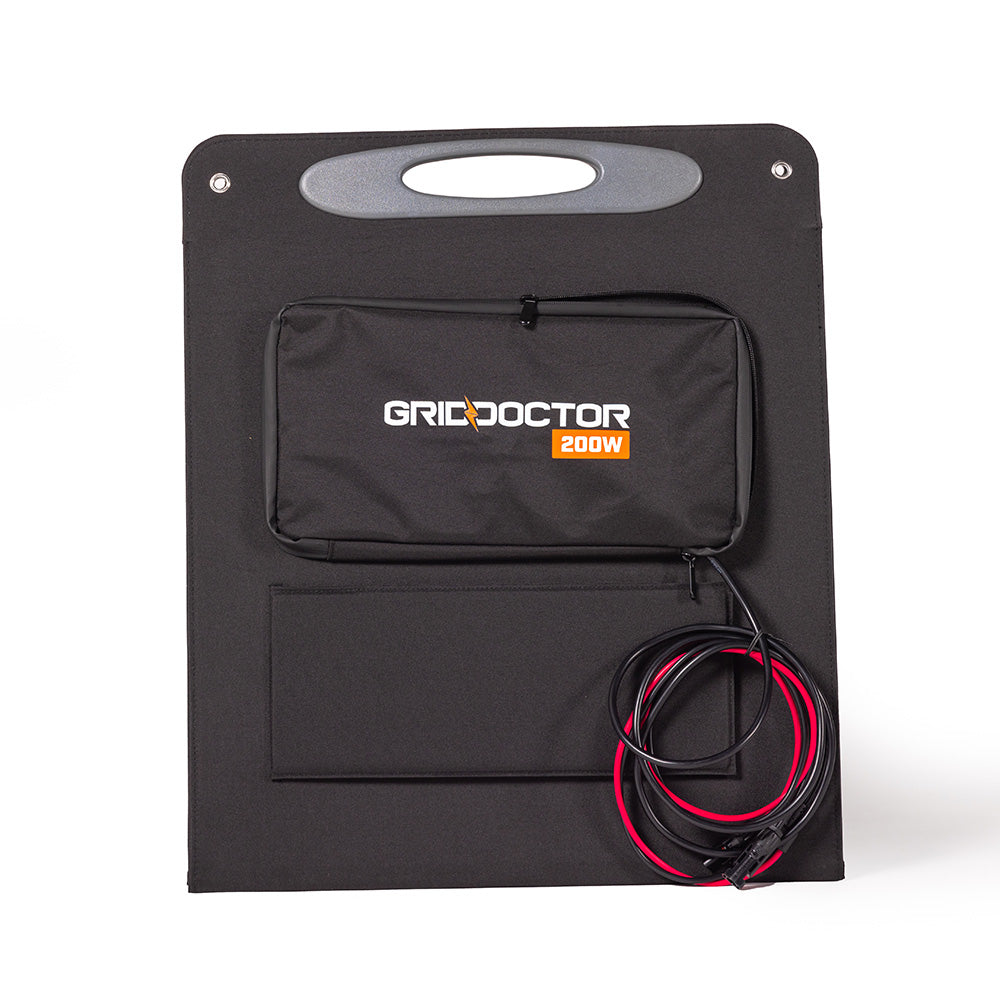

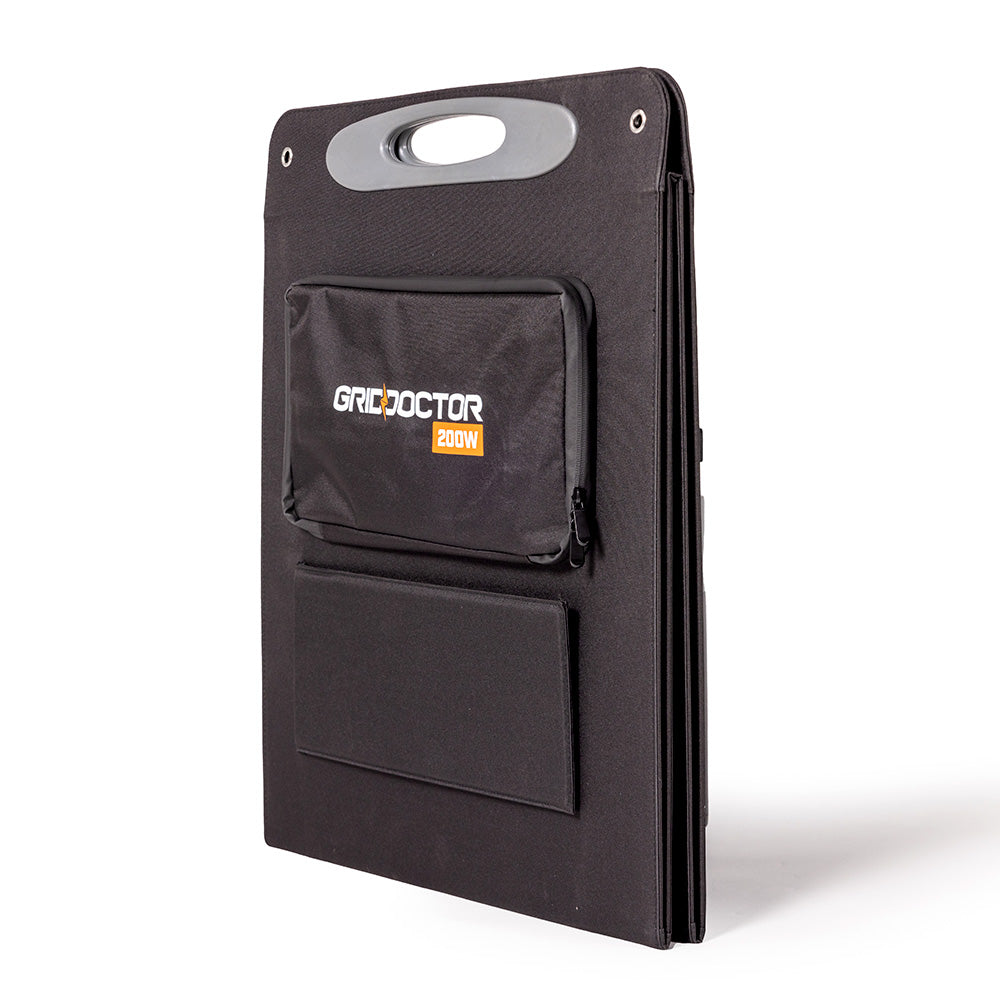

• SECURE IN MORE WAYS THAN ONE - The solar panel’s built-in weatherproof pouch keeps essential cables safe. It eliminates clutter, keeps cables together, and stands up to the wear, tear, and abuse an emergency might bring. As an added bonus, this solar panel can keep you powered up without disclosing your location.

• REINFORCED & READY - Heavy-duty grommets in each corner can be used to attach or hold down the solar panel, allowing multiple positions. Capture sunlight from any angle, anywhere with little effort!

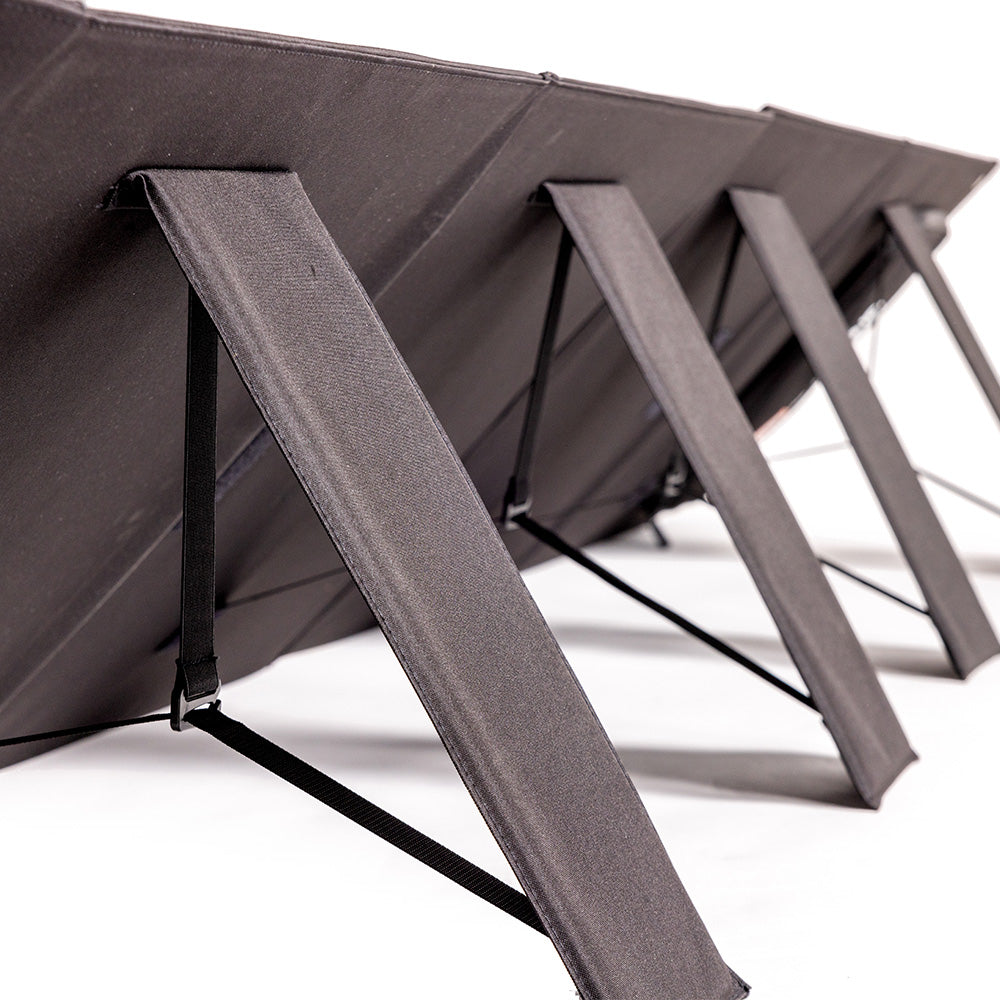

• STABLE ON ANY SURFACE - You need options in an unstable world. At just 15 pounds, this solar panel is lightweight. Plus, with collapsible leg stands, it can be folded down to a compact size for easy storage and transport. Pick your spot and set it up on concrete, rocks, a picnic table, or even the roof of your car!
• DURABLE FOR DISASTERS - This emergency solar panel is designed for enduring durability, despite how light it is. Encased in an abrasion-resistant coating that protects the cells, this solar panel can withstand harsh weather, wear and tear, and crisis conditions.

QUADRUPLE YOUR POWER POTENTIAL

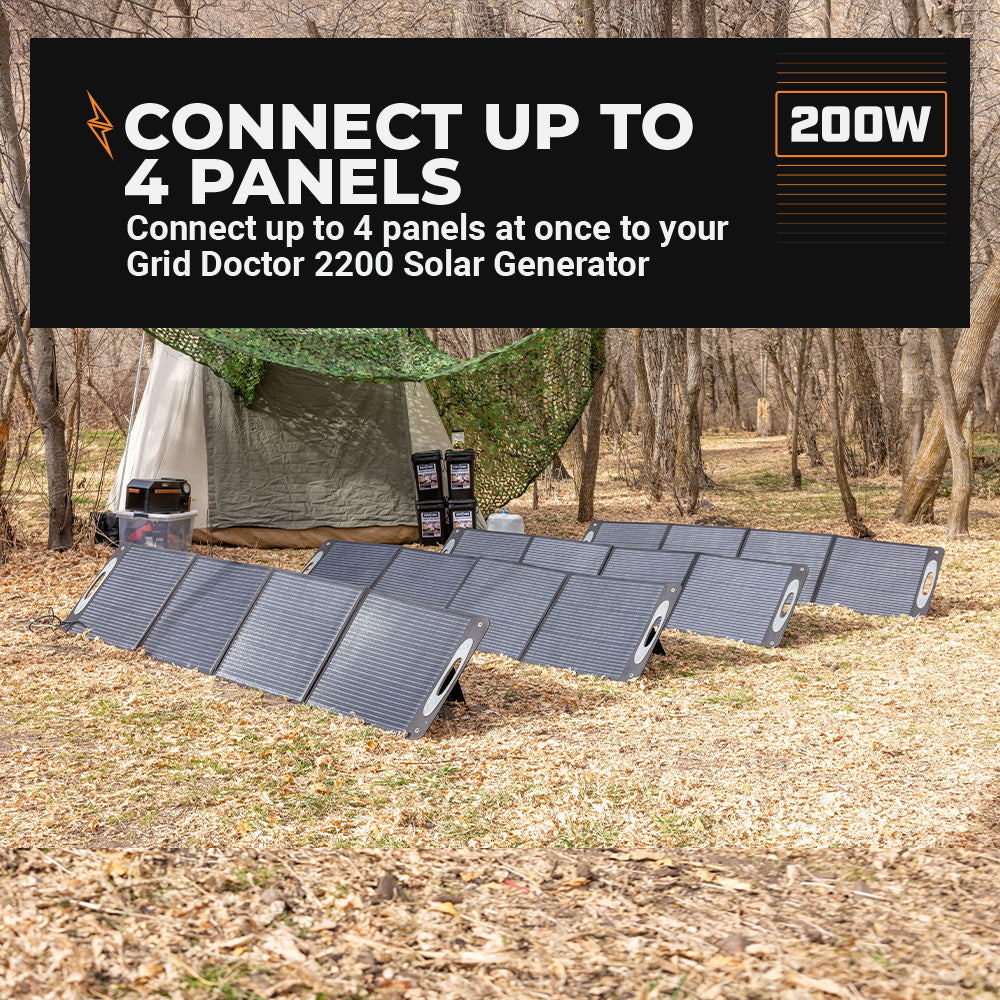

For quadruple the solar power, connect four of these solar panels before plugging into the Grid Doctor 2200 battery. This conjoined force creates faster charging, less time without power, and quadruple the overall power input.

Position some for the morning sun and others for afternoon rays, maximizing how much sun your solar panels soak up without moving them around.

Plus, having four panels means having plenty of backup in case any fail.

EQUIPPED WITH CRITICAL DURABILITY

Our monocrystalline solar panels are built tough. From extreme weather conditions to the bumps and bruises brought on by disaster, you don’t have to play nice with this solar panel.

• IMPACT PROTECTION – Made from a single-crystal structure, this solar panel is less fragile than its polycrystalline counterparts.
• WEATHER RESISTANCE – This solar panel can put up with intense heat, bitter cold, heavy rain, and even hail. The single-crystal structure means fewer weaknesses between cells, allowing efficient thermal expansion and contraction as well as a reduced risk of stress and microcracks.

ESSENTIAL ADAPTABILITY

Adaptability is, arguably, the most important trait in an emergency. Not only for you, but for your gear, too!

This solar panel features foldable construction and collapsible legs, allowing the ultimate adaptability when your circumstances head south.

• SURFACE FLEXIBILITY – You never know where an emergency might take you. Regardless of where you land, this solar panel offers endless setup options. Place it on flat rocks or concrete, the picnic table at your campground, or on the roof of your truck. Bugging out just got a whole lot easier.
• SEAMLESS SUN TRACKING – Follow the sun’s changing position without completely moving the panel.
• SPACE-SAVING STORAGE – This solar panel can be stored without taking up precious space. Slide it under a bed or couch, slip it into the trunk of your car, or tuck it behind a door.

USING THE 200W SOLAR PANEL KIT

The 200W Solar Panel Kit includes the following components:

• (1) 200W solar panel

These simple steps illustrate how to set up the solar panel:

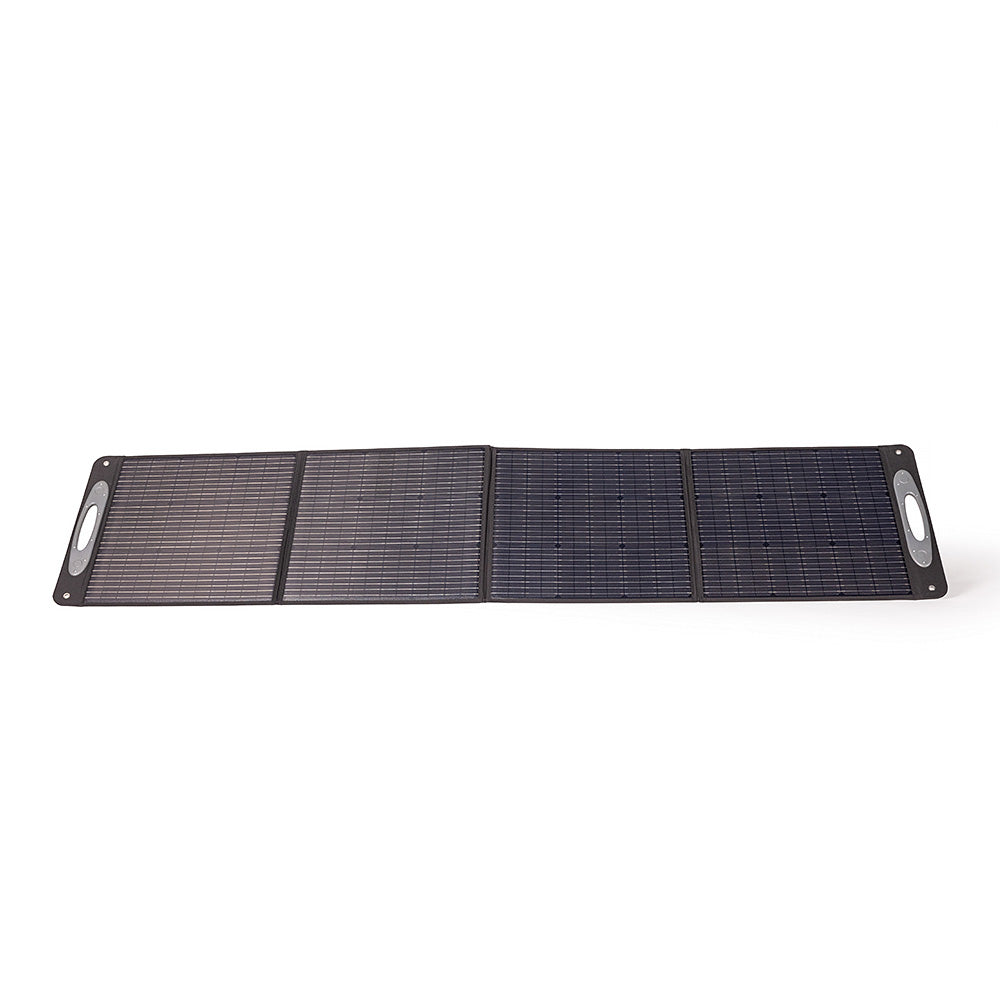

1. Open the solar panel to expose solar cells.
2. To maximize solar energy collection, place the solar panel in direct sunlight and position it perpendicular to the sun’s rays.

When planning on solar panel power, anticipate the solar panel providing +50% of its rated capacity. For example, this 200W solar panel will provide between 100W to 180W of electricity. This is due to the changing positions of the sun, cloud cover, the season, and similar factors. But with the capability to connect up to four 200W solar panels at once, that power potential increases up to 720W!

Here’s how to connect the solar panel to the Grid Doctor 2200 battery:

1. Open the zipper pouch on the solar panel and pull out the cable with MC4 connectors.
2. Attach the MC4 connectors to the MC4-XT60 solar charging cable.
3. Plug the XT60 end of the solar charging cable into the port labeled “INPUT” on the Grid Doctor 2200 battery.
4. The battery will automatically begin to charge. When fully charged, it will immediately stop charging.

Refer to the included instruction manual for more detailed directions on setup, charging, connecting to multiple solar panels, using with the Grid Doctor 2200 battery, and more.

PRODUCT DETAILS

• Open Circuit Voltage: 25V
• Short Circuit Voltage: 11.4A
• Operating Voltage: 21V
• Operating Current: 9.5A
• Wattage: 200W
• Weight: 15.4 lbs.
• Dimensions Folded: 21.1" L x 24.33" W x 2.125" H
  (536mm L x 618mm W x 54mm H)
• Dimensions Open: 21.1" L x 92.48" W x 0.98" H
  (536mm L x 2349mm W x 25mm H)
• Solar Cell Efficiency: ≥22%
• Solar Cell Type: Monocrystalline Silicone
• Interface Type: MC4

200W PANEL WARNINGS

• Only use the solar panel according to the included instructions.
• Only use a dry, soft cloth or tissue to clean the solar panel.
• Do not use detergent or chemical cleaners to clean the solar panel.
• Do not drop or disassemble the solar panel.
• Do not bend the solar panel.
• Do not leave outside when weather is wet.
• Do not store in wet or hot environments.
• Do not allow children to play with the solar panel.
