Backup Power Capacity

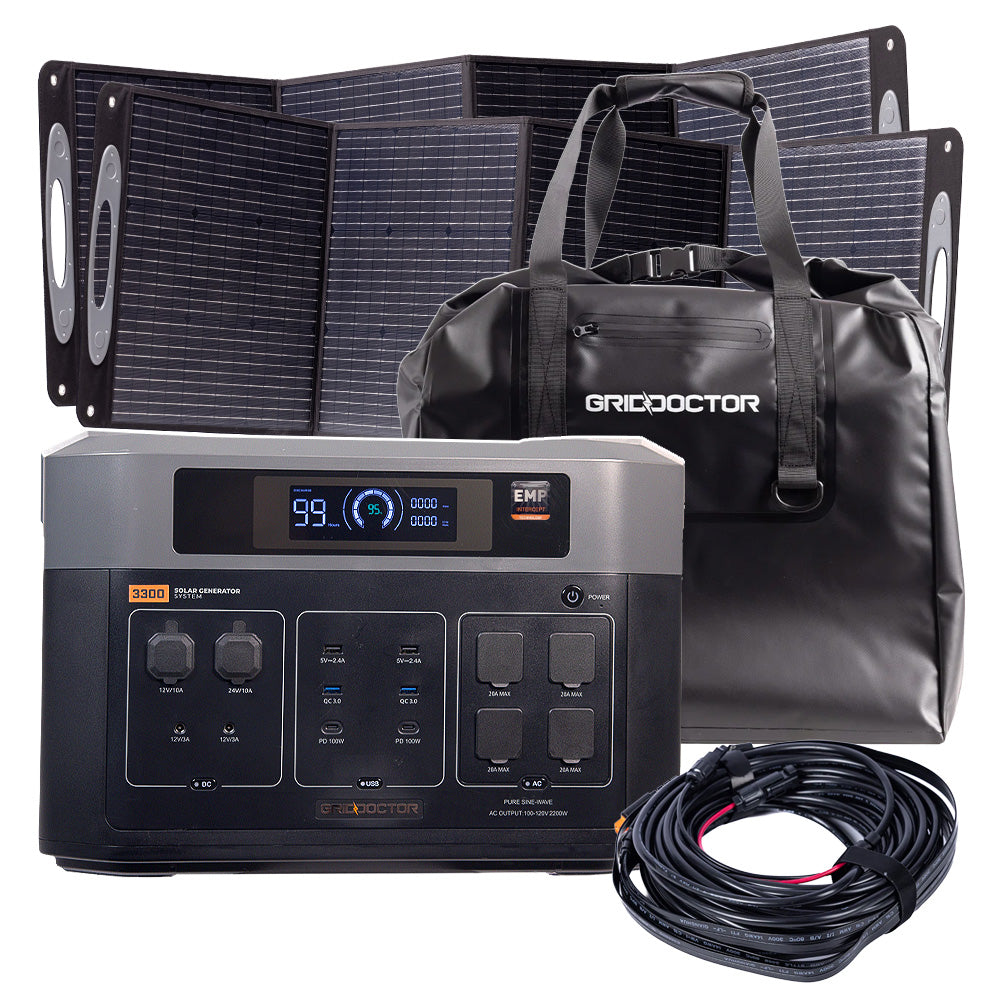

The Grid Doctor 3300 combines a 2,048Wh LiFePO4 battery with a 3,300W pure sine wave inverter.
- 3,300W continuous AC output
- 6,600W surge output
- 2,048Wh battery capacity
- Pure sine wave power for sensitive electronics
- 3,500-cycle LiFePO4 battery
- Capable of powering multiple devices simultaneously
- 30A RV outlet for RVs and compatible high-amperage equipment
Expandable Energy Storage
The Grid Doctor 3300 can grow with your household’s power requirements.
- Supports up to seven compatible expansion batteries
- Expandable from 2,048Wh to 16,384Wh
- Additional batteries can provide longer runtimes during extended outages
- Expansion batteries sold separately
Solar Collection
The bundle includes two waterproof 200W monocrystalline solar panels.
- Up to 400W of combined rated output under ideal conditions
- 22% or greater solar-cell efficiency
- Foldable design for storage and transport
- Integrated stands for easier positioning
- Heavy-duty grommets provide additional setup options
- IP67 dustproof and waterproof rating
Actual solar output will vary according to sunlight, weather, panel angle, temperature, shading, and system configuration.
Extended Panel Placement
The 75-foot Grid Doctor extension cord gives you more freedom to place the panels where sunlight is strongest.
- 75 feet of total reach
- Includes a 15-foot flat under-door section
- Helps keep the generator indoors while panels remain outside
- Allows doors to remain closed during solar charging
- Compatible with Grid Doctor 3300, 2200, and XP systems
- Supports Pass-Thru Charging with compatible Grid Doctor systems
Faraday Protection
The 110-liter Faraday bag provides protective storage for the Grid Doctor generator, an expansion battery, or other compatible electronics.
- Military-grade Faraday shielding fabric
- Blocks cellular, Wi-Fi, Bluetooth, GPS, RFID, and other signals when properly sealed
- Designed to provide added protection from electromagnetic disturbances
- Water-resistant 500D PVC tarpaulin exterior
- Puncture-resistant and tear-resistant construction
- Roll-top and hook-and-loop closure system
- Adjustable closure allows the bag to be rolled down around its contents
Power Connections
The Grid Doctor 3300 includes 15 output ports for powering multiple devices.
- Four standard 120V AC outlets
- One 120V 30A RV outlet
- Two USB-A ports
- Two USB-A QC 3.0 ports
- Two 100W USB-C Power Delivery ports
- 12V DC output
- 12V car-style socket
- GX16 48V aviation socket
Charging Options
The Grid Doctor 3300 can be recharged through several available power sources.
- Up to 1,800W AC quick charging
- 600W AC slow charging
- Up to 1,000W of solar input
- 12V or 24V vehicle charging
- MPPT charge controller for efficient solar charging
- Pass-Thru Charging allows compatible devices to be powered while the generator charges
Estimated Runtime
Device runtime depends on battery capacity, device wattage, conversion efficiency, temperature, and the number of connected devices.
The following formula can be used for a rough estimate:
Total Watt-Hours × 0.90 Depth of Discharge × 0.90 Conversion Rate ÷ Device Wattage = Estimated Runtime
For example, running a 1,000W device from one fully charged 2,048Wh battery:
2,048Wh × 0.90 × 0.90 ÷ 1,000W = Approximately 1.6 hours
Actual runtime may vary. Additional energy is also consumed whenever an output port is active.
