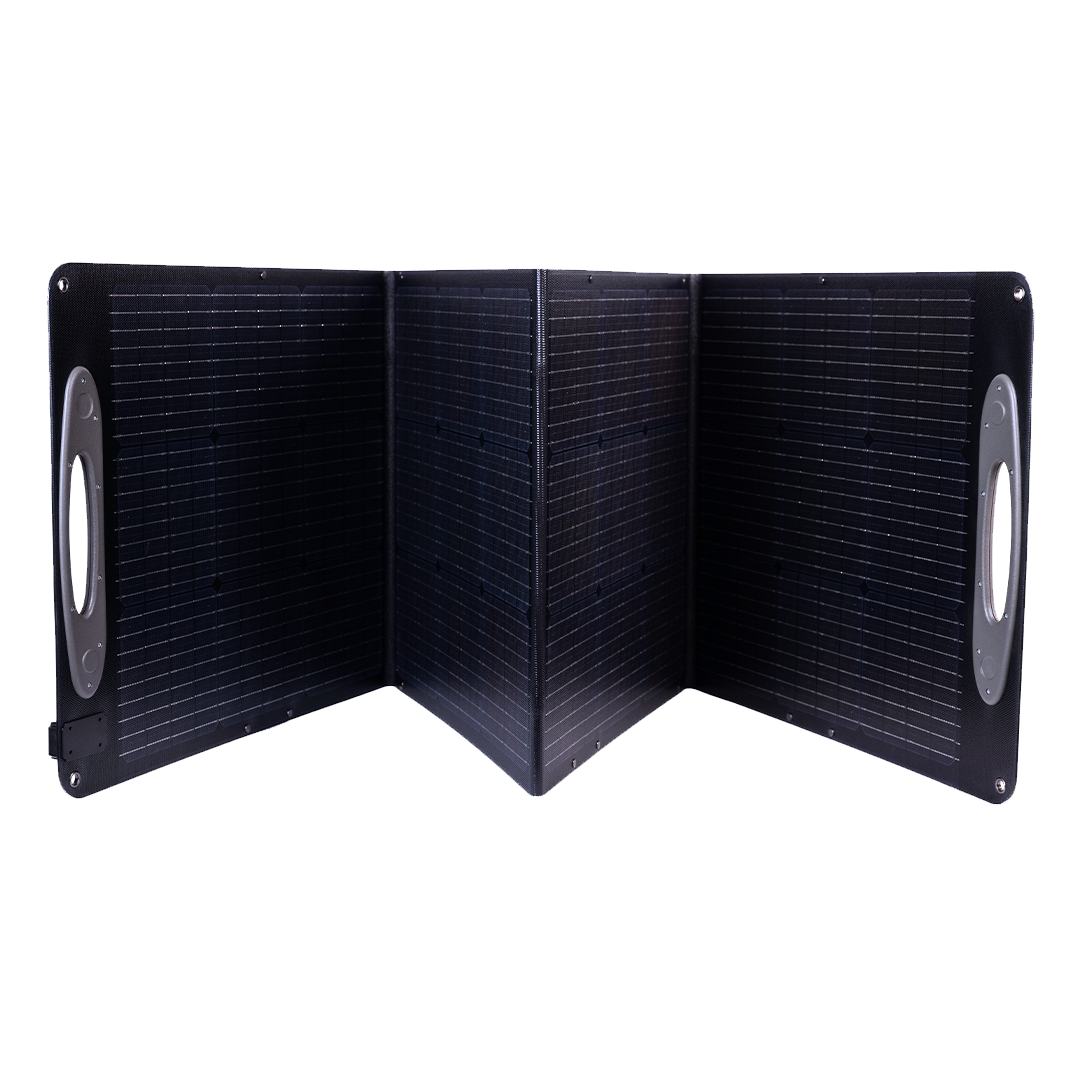

200W Waterproof Solar Panels by Grid Doctor for the 3300 & 2200 Solar Generator Systems

Regular price $447.00
# of Panels
Today: $447.00
  • 200 Watts of Solar Input
  • IP67 Waterproof & Weather-Resistant
  • High-Efficiency Monocrystalline Solar Cells

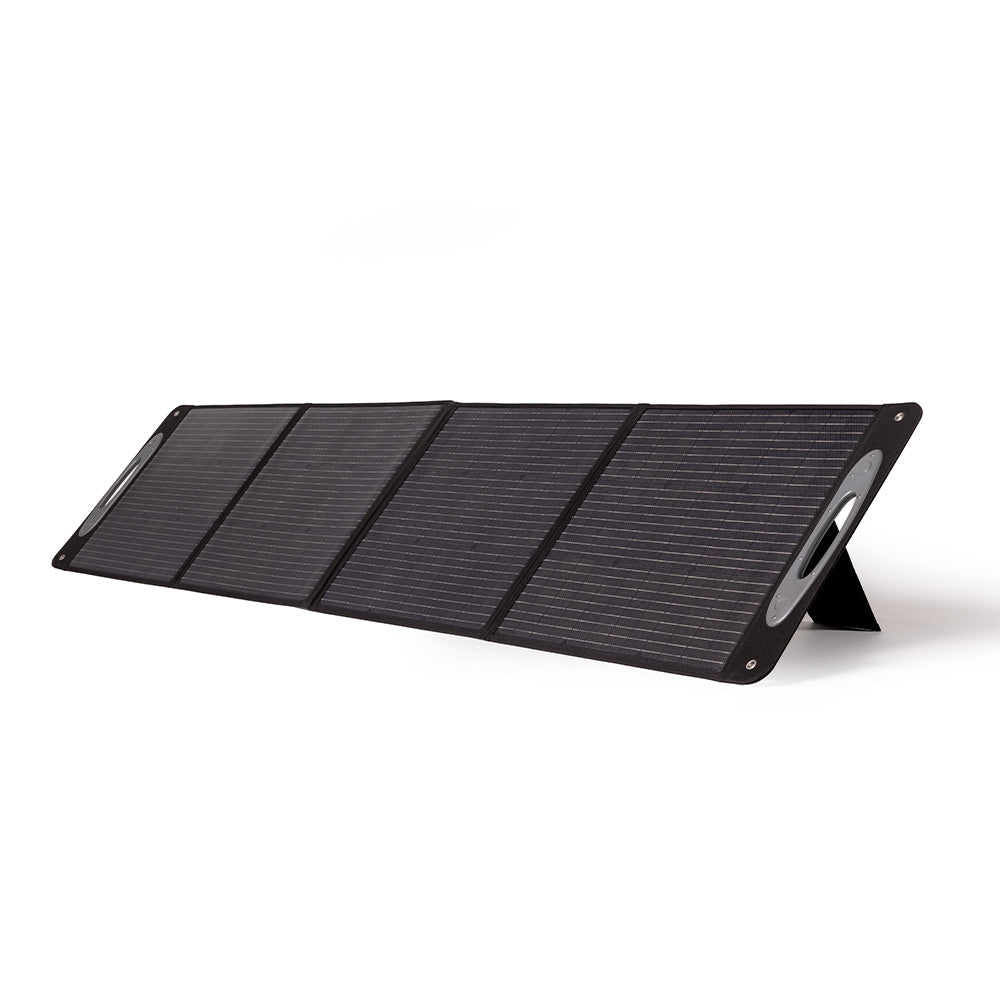

  • Foldable Design with Built-In Kickstands
Product Specifications
  • Maximum Power Output: 200W (+/- 5W)
  • Open Circuit Voltage: 25V (23.5V under load)
  • Short-Circuit Current: 11.4A (load current 10.5A)
  • Operating Voltage: 21V
  • Operating Current: 9.5A

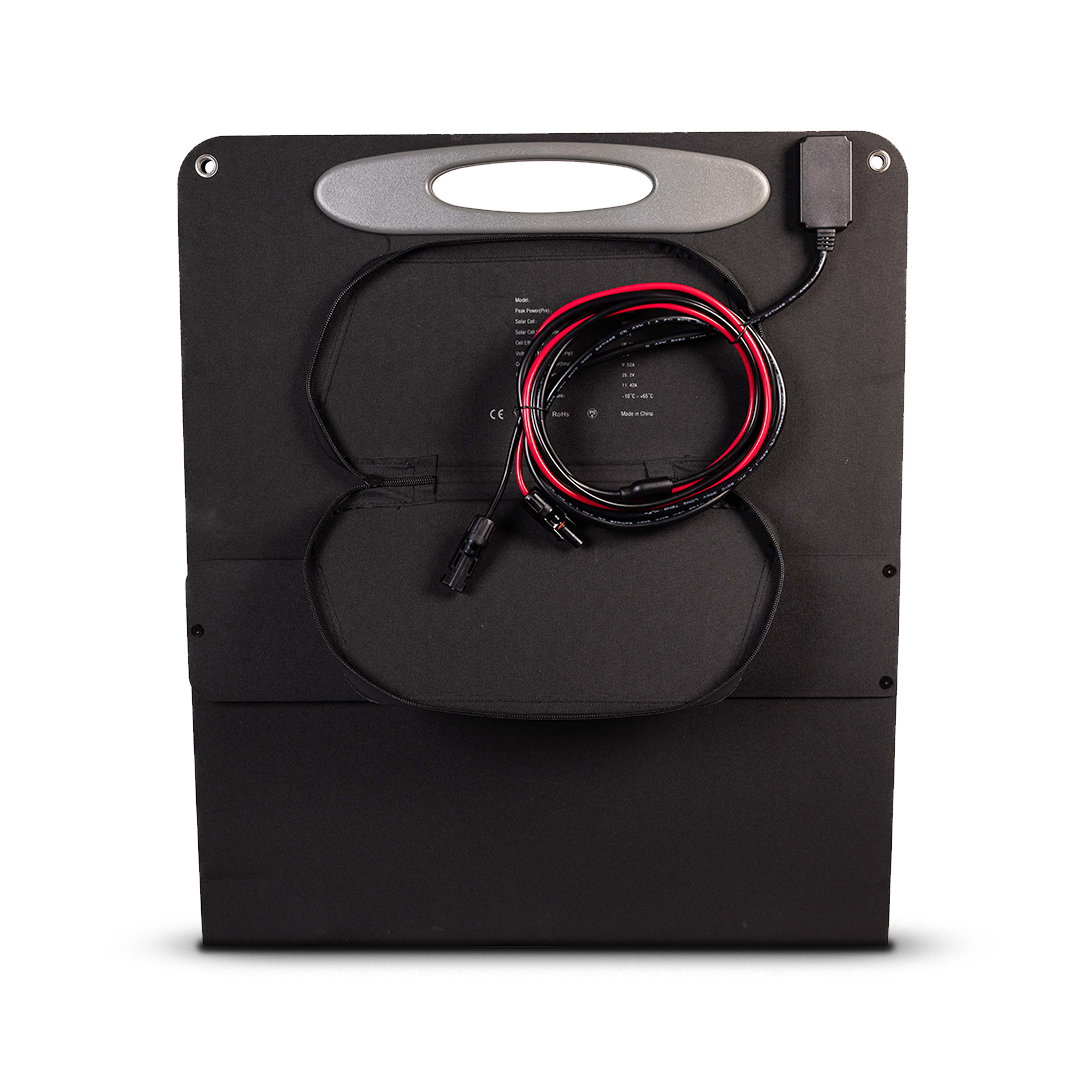

  • Interface Type: MC4 Connector
  • Solar Cell Efficiency: ≥22%
  • Solar Cell: Monocrystalline Silicone
  • Operating Temperature: Recommended +77°F (Range -10°~150°F)

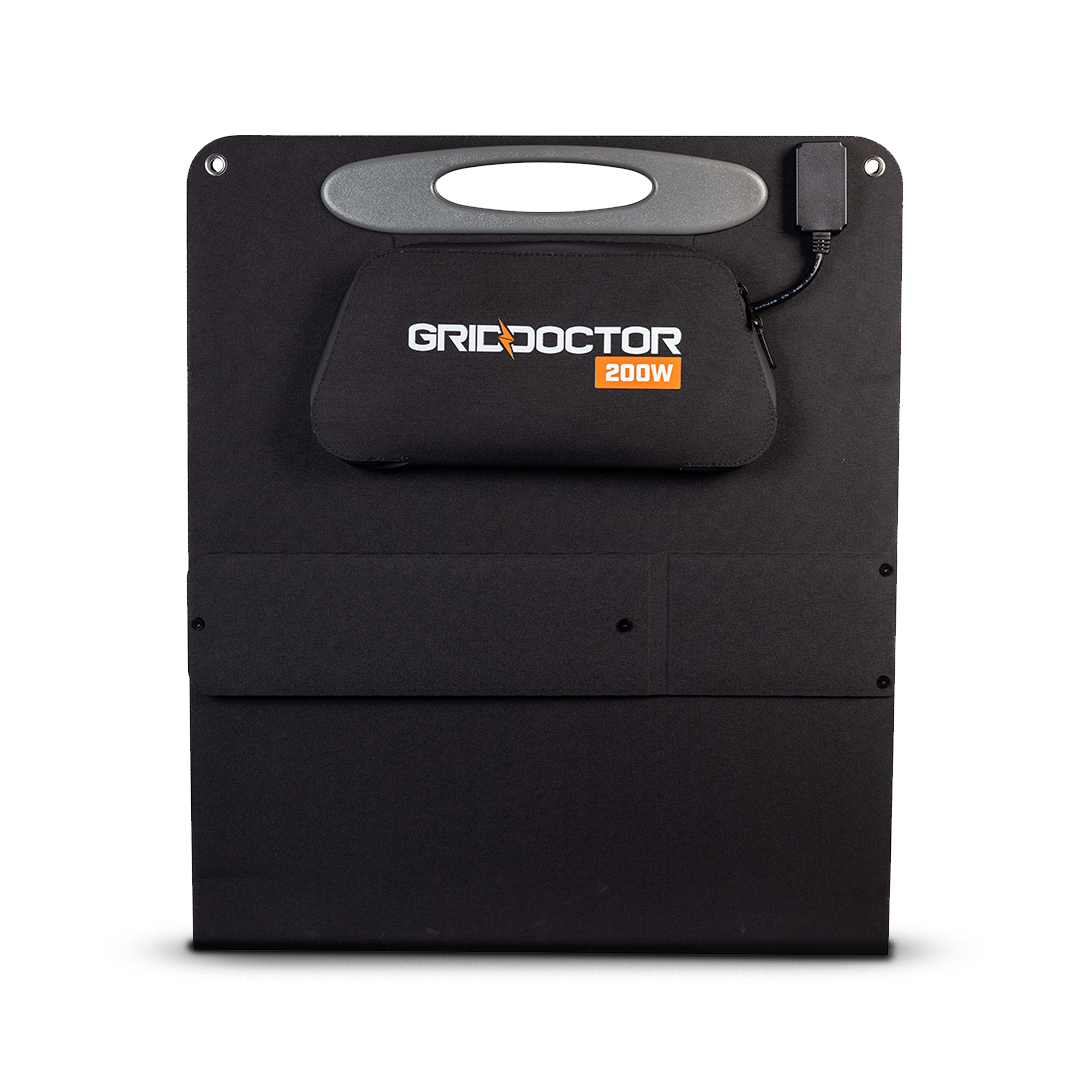

  • Dimensions (Folded): 21.5 x 25 x 2.25 inches (546 x 635 x 57mm)
  • Dimensions (Open): 21.5 x 93.8 x 1.5 inches (546 x 2383 x 38mm)
  • Weight: 19.2 lbs (8.7 kg)
  • Certifications: RoHS, FCC, IP67
Manufacturing & Quality

Every Grid Doctor product is built for long-term reliability and critical-moment performance—then tested to meet rigorous safety and quality standards.

  • Certified Quality:
  • RoHS and FCC compliant
  • Performance Verification: All units are tested for electrical output, charge/discharge efficiency, and protective system responsiveness before shipping.
  • Compliance Monitoring: Manufacturing facilities follow strict environmental and safety guidelines, with ongoing audits and inspections to ensure consistent product quality.

This attention to detail means your Grid Doctor isn't just powerful—it's battle-tested and ready for when you need it most.

Free shipping icon
Free Shipping
Checkmark Icon
Easy Returns
Lock Icon
Disaster Warranty

What This Product Is Built For

The Grid Doctor 200W Waterproof Solar Panel is built to deliver high-wattage solar input for the Grid Doctor 3300 and 2200 Solar Generator Systems.

This panel is engineered for:

  • Rapid off-grid recharging
  • Extended power outages
  • Severe weather preparedness
  • Outdoor and field deployment

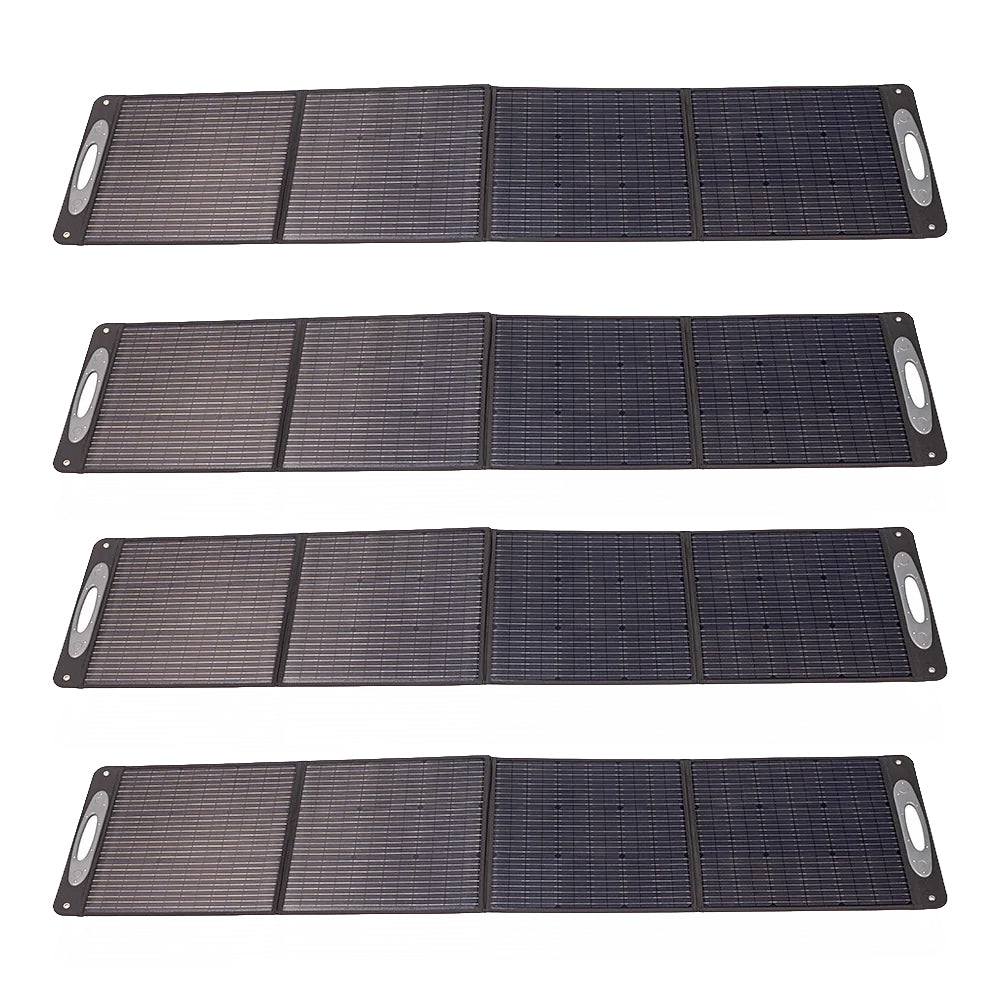

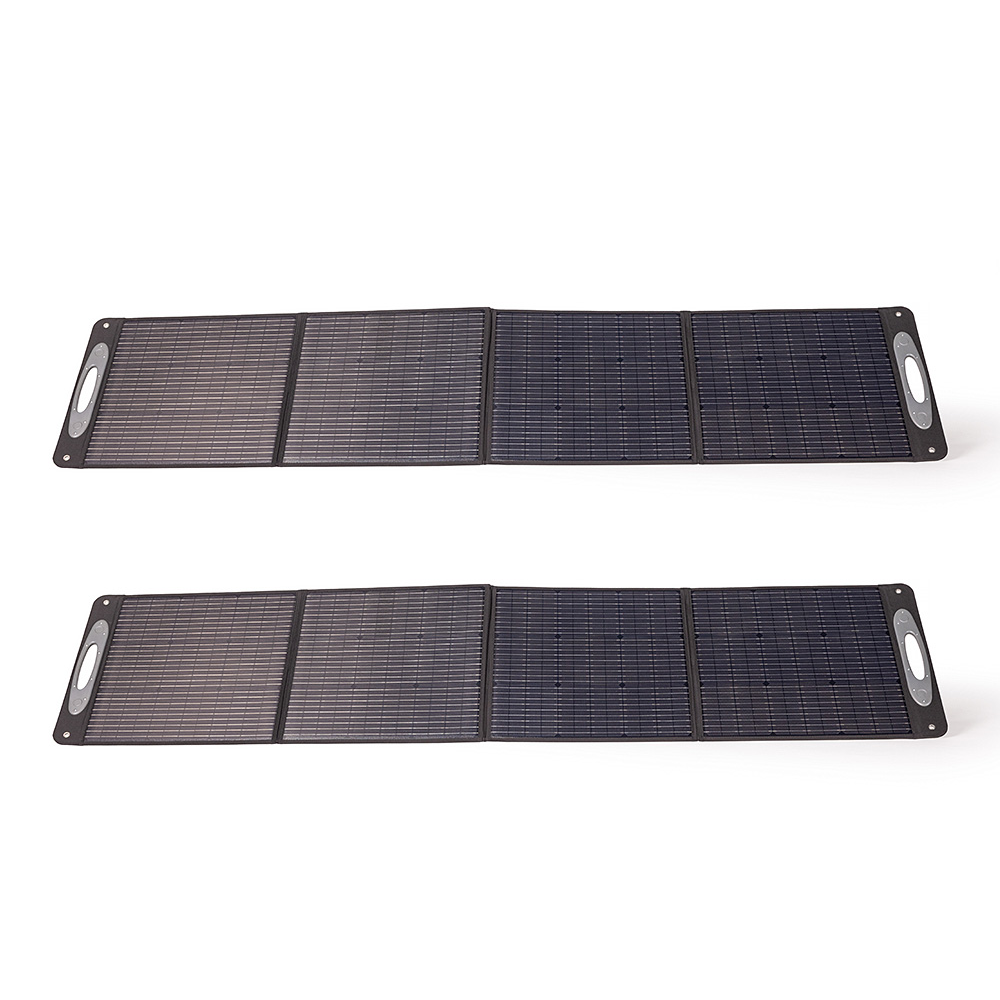

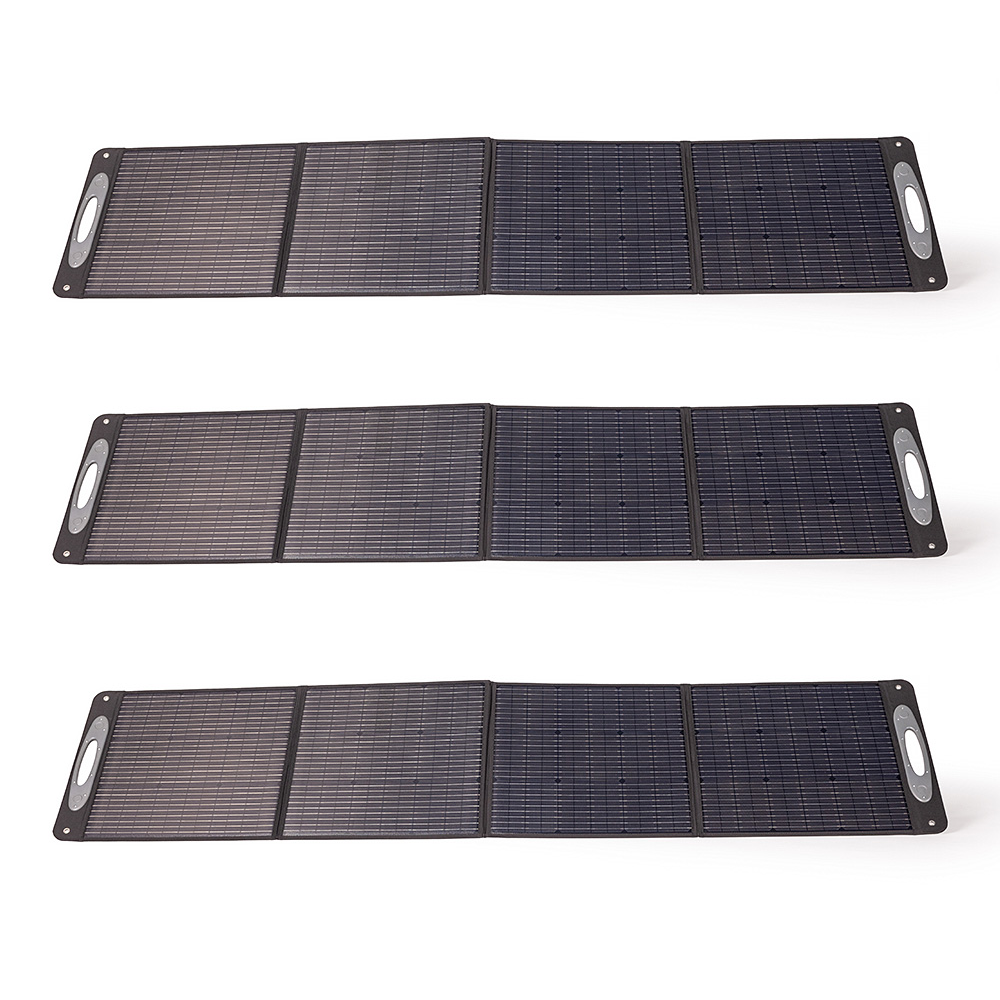

  • Expanding solar input capacity by connecting multiple panels

Choosing the Right Option

This panel is ideal if:

  • You own a Grid Doctor 3300 or 2200 solar generator
  • You want to reduce generator recharge time
  • You need reliable solar charging during extended outages
  • You live in areas with severe or unpredictable weather
  • You plan to run multiple panels for maximum solar input

This may not be right if:

  • You need lightweight backpack solar
  • You are charging small USB power banks
  • You do not own a compatible Grid Doctor generator yet

Key Decision Factors

Here are the key reasons Grid Doctor owners choose this solar panel:

  • 200W maximum output
  • IP67 rated — completely waterproof
  • High-efficiency solar cells
  • Monocrystalline silicon construction for durability and performance
  • MC4 connector interface

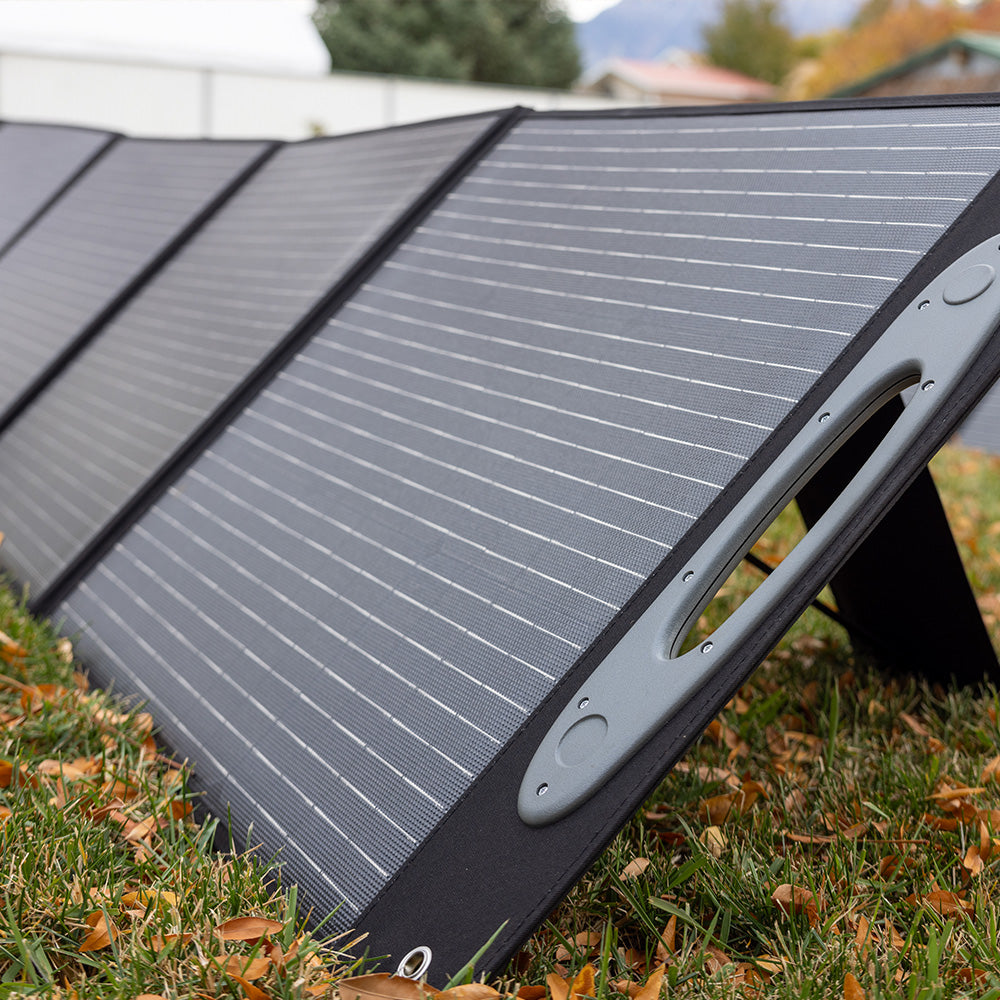

  • Collapsible leg stands for optimal angle positioning
  • Heavy-duty grommets for secure mounting

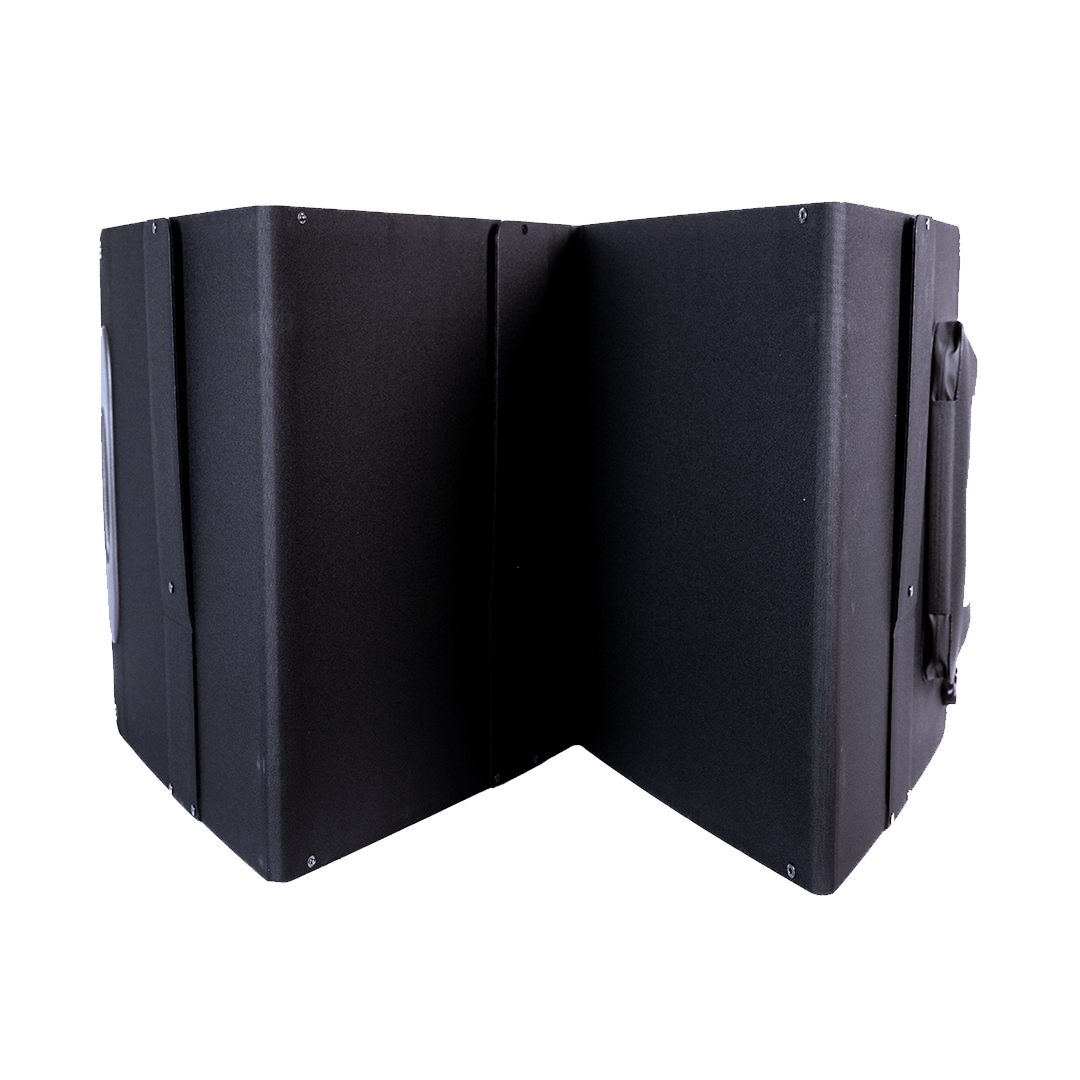

  • Foldable for transport and storage
  • Weather-resistant against rain, hail, heat, and cold
  • Compatible with connecting multiple panels for expanded solar arrays

How This Fits Into Your Survival Plan

The 200 Watt Solar Panel allows owners of the Grid Doctor 3300 & 2200 Solar Generator System to:

  • Reliably recharge their generator when grid power is down
  • Take advantage of free energy from the sun, even when the grid is working
  • Decrease generator recharge time by adding multiple panels

Availability & Fulfillment

This product is in stock and ready to ship! Orders are fulfilled from our owned and operated US warehouses, typically shipped same day and arrive within 2-3 days of placing your order.

Why People Choose This Product

Customers appreciate this panel for its rugged build quality, waterproof rating, relatively light weight for its size, folding design for easy storage, and ease of deployment / connection.

  • Compatible with: Grid Doctor 3300 & 2200 Solar Generator Systems
  • Adds: 200 additional watts of solar input
  • Setup: plug & play, the panel is designed specifically to connect to Grid Doctor 3300 & 2200 Solar Generator Systems
  • Connect up to 5 panels for 1,000W solar input

Disclaimers & Notes

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Important - Please Read

Read all instructions before using the product. You can find our user manual here.

Use only the cables and accessories provided with your Grid Doctor Products or those explicitly approved for use by Grid Doctor. The use of third-party cables or accessories may affect the performance of your Grid Doctor Generator and could pose safety risks. Grid Doctor is not responsible for any loss, damage, or injury resulting from the use of the above mentioned non-approved accessories or cables.
